Yealink headset guides

Yealink Wireless Headset Guides



Headsets

At Clarity, we carry noise-cancelling headsets to meet your business needs.

See our current models and videos below for details!

The Yealink WH62 is a new class of DECT wireless professional headsets.  The Yealink WH62 is compatible with most of our Yealink phone models and is cross-compatible with many Polycom phone models as well.

  1. DECT Wireless connection
  2. DECT Wireless range up to 525 ft.
  3. Up to 13 hours of talk time
  4. Microsoft Teams and Zoom certified


Guides Attached to this Article

  • Quick Start Guide
  • Data Sheet

Pictures and Diagrams

Need a close-up look at the Headset?  See below:

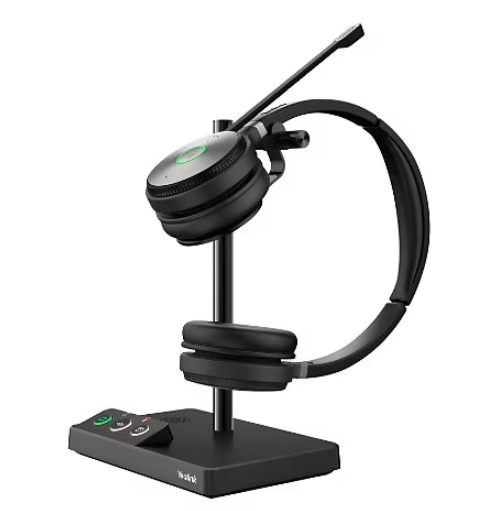

Front View

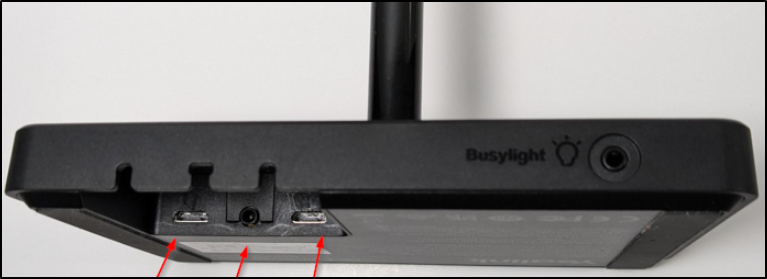

 Back/Bottom View


 or

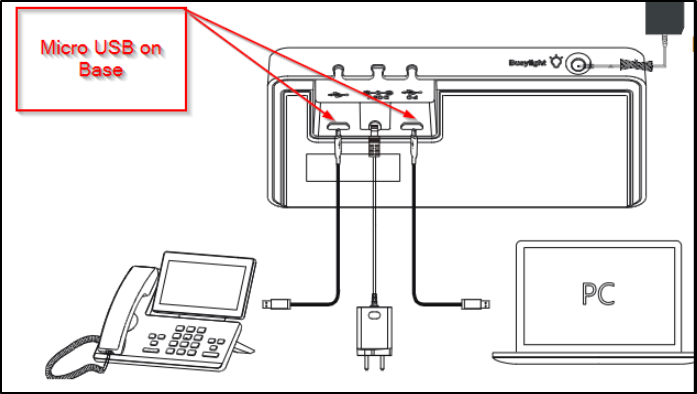

Cable Connection

  1. You will connect using the included micro USB to USB A cable.
    1. Insert the micro USB end into the Base.  Insert the USB A end into the phone.

  2. If needed, reboot your phone.


Headset Connection to a Polycom Phone


Setup and Cabling for the Polycom VVX

Polycom VVX series phones will connect using the included micro USB to USB A cable.
  1. Insert the micro USB end into the Base.  Insert the USB A end into the phone.   The USB A connection on the phone may be on the side and/or back of the phone.

  2. After cabling the Headset, set up your Polycom phone to work with the Headset for call control.


Setup and Cabling for the Poly Edge

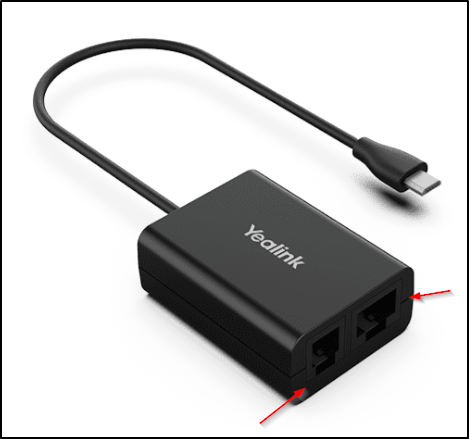

  1. If you are connecting a Poly Edge series phone to this headset, you will connect using an EHS60 adapter and two of the three included cables that come with it.  These are cables A and C.

    1. Plug the micro USB end into the Yealink WH62 base.
    2. Connect Cables A (a single cable with two RJ9 phone ends) and Cable C (a single cable with an RJ45 and a five-pin connector) into one end of the adapter, and plug the other end into the phone.

  2. If needed, reboot your phone.

  3. After cabling the Headset, set up your Polycom phone to work with the Headset for call control.


Program the Headset to the Polycom Phone

After cabling the Headset, set up your Polycom phone to work with the Headset for call control.
  1. Click the Menu button (HOME icon) >> Basic >> Preferences >> Headset >>
    1. Select Headset Memory.
    2. Select Enabled.

  2. Press the back button.

  3. Press Hookswitch mode.
    1. Select Yealink.

  4. Your phone will reboot automatically.


How Can I Get a Headset?

Just contact your Account Executive at 800-786-6160 for a Quote!

Prefer to contact us another way?  You can also contact us by email or by request form!
By Request: Request Form.
